TSAP-16

TSAP-16

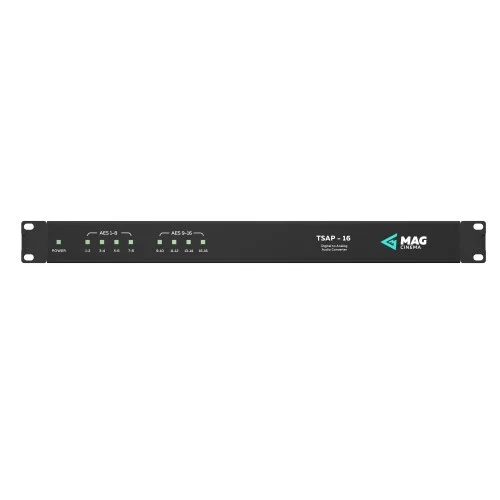

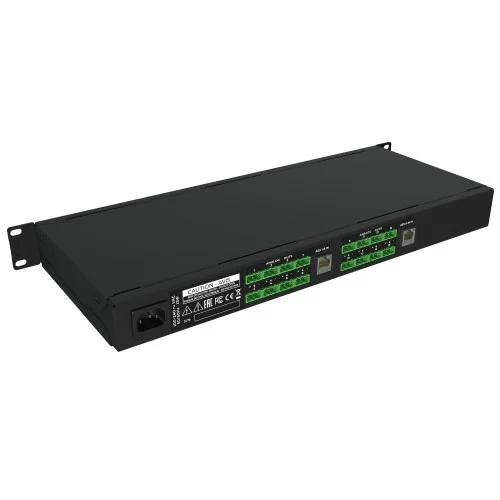

TSAP-16 is a 16-channel digital-to-analog convertor, which gives possibility to connect cinema processor with only analog inputs to digital cinema server output or to use internal processor of the server. Up to 8 AES/EBU digital audio inputs are accepted through RJ-45 socket. Output is served via easily accessed Phoenix sockets.

Quick info
Category:

Description

TSAP-16 is a 16-channel digital-to-analog convertor, which gives possibility to connect cinema processor with only analog inputs to digital cinema server output or to use internal processor of the server. Up to 8 AES/EBU digital audio inputs are accepted through RJ-45 socket. Output is served via easily accessed Phoenix sockets.

Specifications

  • Frequency range: 20 Hz – 20000 Hz
  • Digital AES/EBU input: 2x RJ-45
  • Analog output: 16x 3 pin balanced Phoenix
  • Indication: AES/EBU signal presence; Power indicator
  • Mains plug: C14
  • Mains nominal voltage: 100V – 240VAC / 50-60Hz
  • Max. power consumption: 15W
  • Rack height: 1U
  • Dimensions (W×H×D): 483 x 44 x 190 mm; 19,02” x 1,72” x 7,47”
  • Shipping dimensions (WxHxD): 550 x 70 x 290 mm; 21,65” x 2,76” x 11,42”
  • Package contents: TSAP-16; 1,5m mains cable
  • Mains cable options:
    • TSAP-16-EU: Type F – C13
    • TSAP-16-US: Type B – C13
    • TSAP-16-UK: Type G – C13
    • TSAP-16-CN: Type I – C13
    • TSAP-16-IN: Type M – C13
  • Net weight: 2,3 kg / 5 lbs
  • Shipping weight: 3,4 kg / 7,5 lbs

Downloads

TSAP-16 Datasheet
