Description

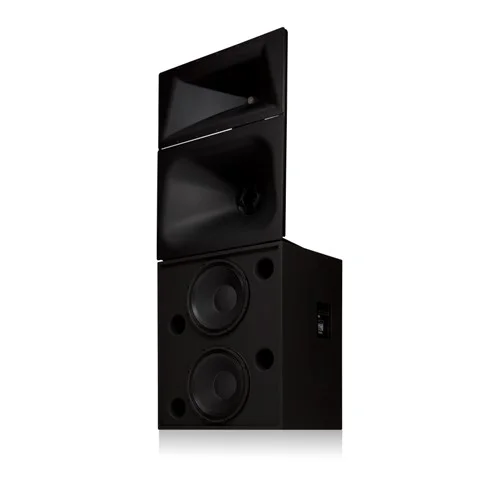

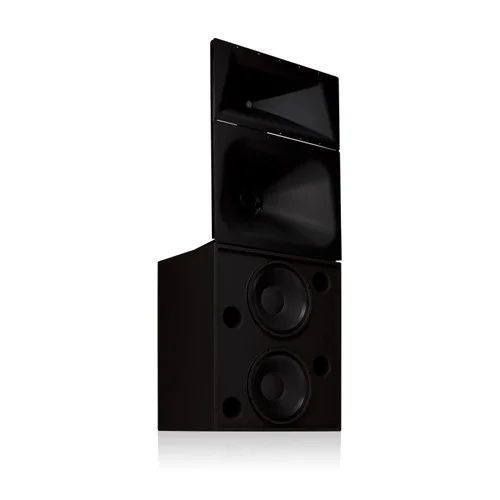

Developed specifically for the unique requirements of professional motion picture playback, the SC-223 extends QSC’s commitment to the cinema market. As a member of the DCS Digital Cinema Speaker Series, the SC-223 is a 3-way bi-amplified screen channel loudspeaker system comprised of two main units – the MH-1060 mid-high frequency and the LF-2215 low – frequency.
The MH-1060 mid-high system features a high output, horn loaded 10-inch (254mm) midrange cone driver and 2.4-inch (60mm) titanium diaphragm compression driver mounted to an adjustable pan and tilt bracket. The MH-1060 includes a passive crossover for bi-amp operation. The MH-1060 provides extended frequency coverage for the critical midrange band. A high power 10-inch cone driver allows operation as low as 300 Hz and the advanced phase plug coupling permits a crossover point of 2200 Hz to the high frequency horn. The ensures that most of the dialog range is reproduced by a single element, for unmatched intelligibility.
The LF- 2215 dual 15-inch (381 mm) low-frequency enclosure is designed specifically to address the extended low-frequency response required for cinema applications. The LF-2215 covers the frequency range from 35 Hz to 300 Hz. Close Coupled Woofers (CCW), with their tight spacing between woofers, improves coupling.
The SC-223 is designed for ease of installation. The MH-1060 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the MH-1060 to the top of the LF-2215 enclosure.
Features
- 3-way bi-amplified screen channel system
- MH-1060 provides 90° horizontal by +20° to -30° vertical coverage
- LF-2215 is constructed of MDF and is heavily braced
- Low-distortion waveguides provide highly articulate dialogue
- Shallow depth (20-inch) facilities installation
