Specifications

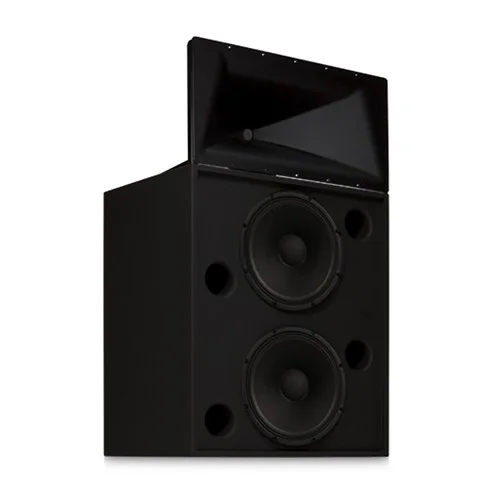

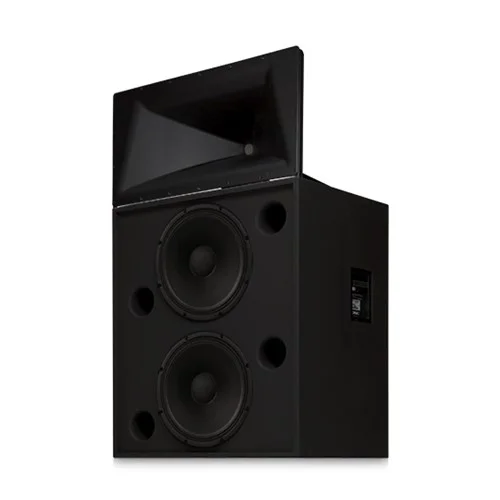

• SPECIFICATIONS – SC-222
• Nominal Coverage : 90° horizontal × +20 to -35° vertical
• Frequency Range : 37 Hz – 16 kHz (-6 dB)
• Crossover Frequency : 700 Hz, 24 dB per octave
• Modules :
  • LF : LF-2215
  • HF : HF-75C
• Impedance :
  • LF : 4Ω
  • HF : 8Ω
• Sensitivity (1W/1m, half space) :
  • LF : 98 dB
  • HF : 108 dB
• Maximum Input Power :
  • 8 hours IEC 268 :
    • LF : 600 W RMS
    • HF : 40 W RMS
  • 2 hours AES (50 Hz – 20 kHz) :
    • LF : 800 W RMS
    • HF : 75 W RMS
• Recommended Amplifier Power :
  • LF : 1200 W RMS maximum
  • HF : 100 W RMS maximum
• Recommended Processing :
  • LF : Subsonic filter below 30 Hz, >18 dB per octave
  • HF : 4th-order LR crossover at 700 Hz via QSC processor
• Connectors :
  • LF : Barrier strip terminals (#10 AWG)
  • HF : Barrier strip terminals (#10 AWG)
• Transducers :
  • LF : Two 15″ woofers (381 mm), 3” copper voice coils
  • HF : 1.5″ exit, 3″ titanium diaphragm compression driver
• Enclosure :
  • LF : Quasi B4 alignment, ported, MDF, flared ports, reinforced
  • HF : Tilt/Pan bracket ±10° vertical, ±10° horizontal
• Dimensions (HWD) :
  • LF : 35.75” × 30” × 20.3” (908 × 762 × 516 mm)
  • HF : 16” × 30” × 20” (406 × 762 × 508 mm)
• Weight (Net) :
  • LF : 172 lb (78 kg)
  • HF : 40 lb (18.4 kg)
