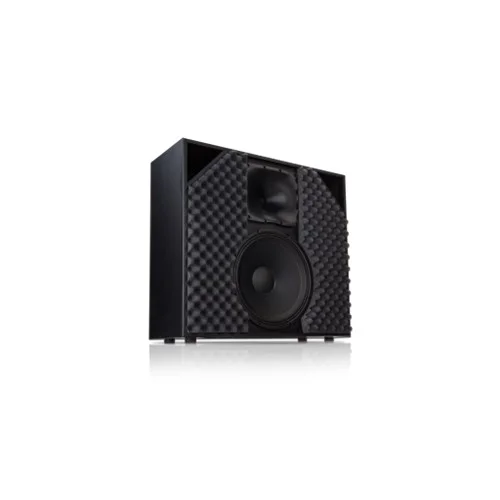

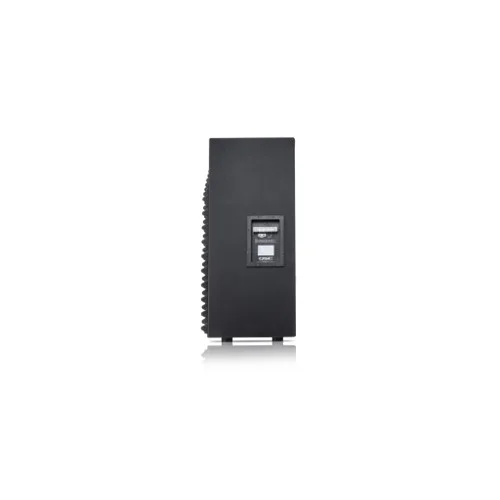

QSC SC-1150

QSC SC-1150

  • Optimized design for smaller cinemas—up to 45 ft (14 m) in length
  • Single enclosure, two-way screen channel loudspeaker
  • Requires less than 12 inches (305 mm) behind screen
  • Passive crossover requires only one amplifier channel
  • 90° Axisymmetric horn
  • 15-inch (380 mm) woofer with 3-inch (76 mm) voice coil
  • 1.75-inch (44 mm) voice coil HF compression driver
  • Screw-type barrier-strip connectors
Quick info
Category:

Description

Features

  • Optimized design for smaller cinemas—up to 45 ft (14 m) in length
  • Single enclosure, two-way screen channel loudspeaker
  • Requires less than 12 inches (305 mm) behind screen
  • Passive crossover requires only one amplifier channel
  • 90° Axisymmetric horn
  • 15-inch (380 mm) woofer with 3-inch (76 mm) voice coil
  • 1.75-inch (44 mm) voice coil HF compression driver
  • Screw-type barrier-strip connectors

Specifications

  • SPECIFICATIONS – SC-1150
  • Rated Coverage Angle (-6 dB) : 90° Axisymmetric
  • Frequency Range (-10 dB) : 43 Hz to 19 kHz
  • Rated Noise Power : 400 W
  • Sensitivity : 96 dB
  • Maximum Continuous SPL : 122 dB
  • Maximum Peak SPL : 128 dB
  • Rated Impedance : 8Ω
  • Maximum Recommended Amplifier Power : 600 W
  • Transducers :
    • LF : 15-inch (380 mm) woofer, 3-inch voice coil
    • HF : Compression driver with 1.75-inch (44 mm) voice coil
  • Enclosure : MDF, non-reflective vinyl wrap
  • Dimensions (H×W×D) inches : 27.2 × 30 × 11.7
  • Dimensions (H×W×D) mm : 690 × 762 × 297
  • Net Weight : 71 lb (32.3 kg)

Downloads

QSC SC-1150 Specifications
