Perfect fit for small and mid-sized halls, SCR-415 is a extremely thin (11 inch) speaker fitting in the tightest behind-screen space. Speaker’s sensitvity allows for much lower power amplifiers ratings, further reducing the project costs and enviromental impact

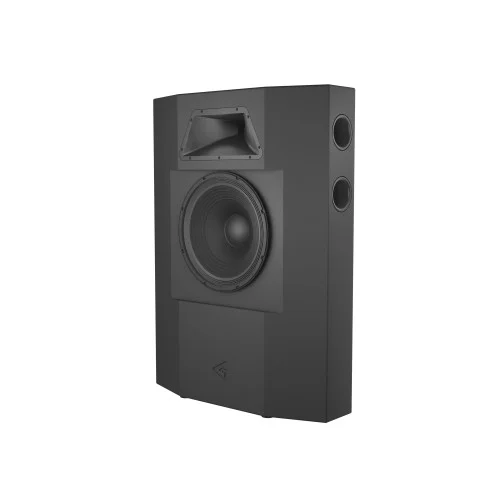

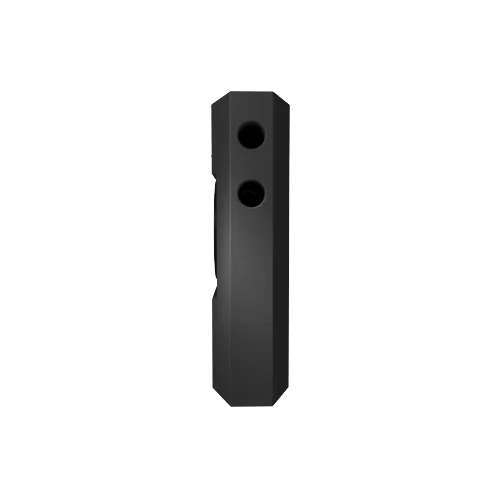

MAG SCR-415
 |
Heavy duty Rigid, reliable enclosure designs |
 |
Quality enclosure Carefully designed own components |
 |
Constant experience Superior sound experience for any theater size |
 |
Easily fit Ease of connection with built-in passive crossovers |
Description
Heavy duty: Rigid, reliable enclosure designs
Quality enclosure: Carefully designed own components
Constant experience: Superior sound experience for any theater size
Easily fit: Ease of connection with built-in passive crossovers
Perfect fit for small and mid-sized halls, SCR-415 is a extremely thin (11 inch) speaker fitting in the tightest behind-screen space. Speaker’s sensitvity allows for much lower power amplifiers ratings, further reducing the project costs and enviromental impact
Specifications
- Type : Cinema Screen Speaker
- Frequency response (+3-6dB) : 40 – 18,000 Hz
- Max continous SPL² : 123.5 dB
- Sensitivity (1W/1m) (half-space)¹ :
- 99 dB passive
- 99 dB LF / 108 dB HF bi-amp
- Driver : 15” + 1”
- Nominal impedance :
- 4 Ohm passive
- 4 Ohm LF / 8 Ohm HF bi-amp
- Rated power³ :
- 300 W passive
- 300 W LF / 50 W HF bi-amp
- Coverage Horizontal⁴ : 60°–90° variable
- Coverage Vertical⁴ : +5° to -35°
- Connectors : Barrier strip screw terminal
- Dimensions (WxHxD) : 750 × 1025 × 280 mm
- Net weight : 41 kg
- Gross Weight : 46 kg
- Mounting :
- 2×M5 floor mounting
- 4×M8 bracket mounting
- Enclosure material : Plywood, MDF; wear-resistant paint
- Color : Black
