Dolby DAC3202

Description

The Dolby DAC3202 allows you to use legacy amplifiers in Dolby Atmos installations. The Dolby Atmos Cinema Processor CP850, CP950A or IMS3000 employ an audio-over-Ethernet protocol to send a digital audio stream to Dolby DAC3202. A DAC3202 converts the digital audio stream to analog audio (up to 32 outputs) for connection to amplifiers.

A Dolby Atmos Cinema Processor CP850 or CP950A together with a single DAC3202 can support up to 48 speaker feeds (using the 16 analog outputs on the CP850 or CP950A). Installations with more than 48 speaker feeds will need two DAC3202s.

Specifications

Digital Audio Protocol:
- AES67
Outputs:

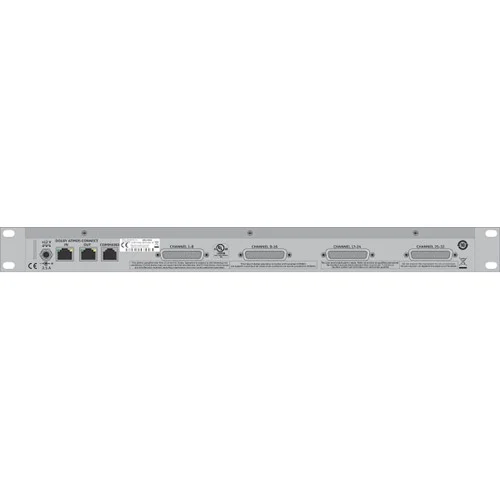

- 32 analog audio outputs via 4 x DB-25 Female connectors
Output Configuration:
- Web UI
Power:
- 12V DC external power supply (72 Watts Max. 6 amps)
- Input voltage – 100-240 VAC; 50-60 Hz
Maximum output level:
- +20 dBu
Frequency response:
- 20 Hz–20 kHz (+0.5 dB/–1 dB)
Dynamic range:
- 108 dB, typical 22 Hz–22 kHz unweighted
Environmental Conditions:
- Operating: 0°C–40°C (32°F–104°F)
- Humidity: 20%–80% relative
- Humidity (noncondensing)
Physical Dimensions and Weight:
- Unit Dimensions (Net):
  - 17.5” x 8” x 1 5/8” (44.1 x 20 x 4.13 cm)
- Shipping (Gross):
  - 23” x 11” x 5 1/4” (58.5 x 28 x 13 cm)
- Net Weight: 2.4 kg (5.3 lbs)
- Shipping Weight: 3.4 kg (7.5 lbs)
