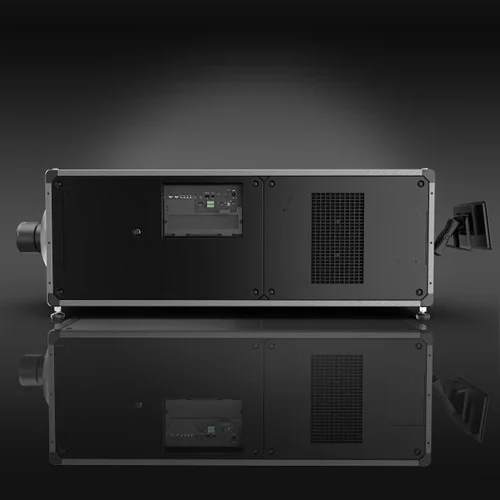

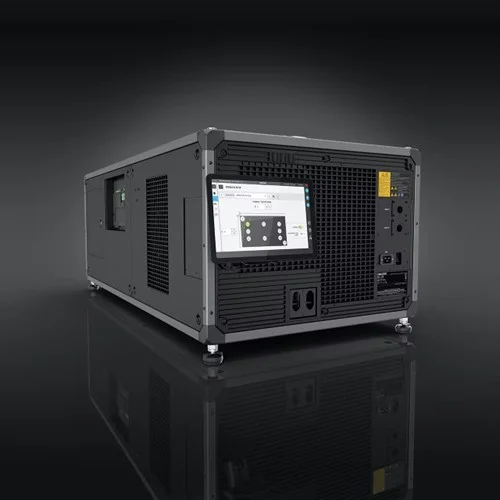

Christie CP4440-RGB

Description

The Christie CP4440-RGB pure laser cinema projectors defines the premium movie-going experience for large format theatres. Featuring CineLife+ electronics and Real|Laser illumination, this compact DCI-compliant projector excels in image quality, operational lifetime, and onscreen brightness. With the CP4440-RGB, exhibitors can impress audiences with incredibly colorful and detailed, true-to-life 4K images while benefiting from a platform designed to support the content and formats of the future.

What you don’t see

Built on the CineLife+ platform, the CP4440-RGB is capable of displaying HFR titles in 4K at 120 frames per second. With this new system architecture and ultrafast processing, audiences won’t see the motion blur typical of the giant screen experiences. These projectors deliver artifact-free images in 2D and 3D. This adds to the already heightened sense of realism created with Christie Real|Laser™ illumination.

Key features

Hyper realism – new system architecture that displays content without motion blur and artifacts
Ultra-fast processing – HDMI 2.0 and 4x 12GB SDI inputs for 1.06G pixels per sec
Low maintenance – sealed optics for protection against dust ingress
Enhanced Wavelength Diversity (EWD) – utilising MPD technology to improve image quality on all screen types
Long-lasting light source – over 50,000 hours of optimal performance
Best-in-class operational efficiency – 8.9 lumens per watt

Rental Mode

Christie CineLife^™ and CineLife+^™ projectors are now equipped with Rental Mode!

Specifications

Brightness
- Up to 45,000 lumens with HB lens
- Up to 35,000 lumens with UHC lens.
Contrast ratio
- Up to 6000:1 sequential with UHC lens
- Up to 2000:1 with standard HB lens
Color gamut / number of colors
- >95% Rec. 2020 coverage
Digital micromirror device
- 1.38” Enhanced 4K 3-chip DMD DLP Cinema®
DMD DLP Cinema®
- 4096 x 2160 (4K)
Resolution
- 4K (4096 x 2160)
Illumination performance (hrs)
- >50,000 hours †
Lens mount
- Fully motorized Intelligent Lens System (ILS™)
Power input requirements
- Input A and Input B: 200-240 VAC @ 50-60Hz, 16A Max
- UPS Input: 200-240 VAC @ 50-60Hz, Single phase, 10A Max
- Chiller: 200-240 VAC @ 50-60Hz, 20A Max after 20A
Audible noise
- <70 dBA @ 25°C
Power consumption
- 5300W including chiller, max DCI brightness, 25°C ambient 18,085 BTU/hr
Heat extraction
- No heat extraction necessary. CFM requirements when used:
- Projector: 350 CFM min
- Chiller: 1340 CFM min
Environment
- Ambient temperature: 15-30°C
- Humidity (non-condensing): 20-80%
- Altitude: <3000 m
Laser class
- Class 1 – Risk Group 3
Processing Electronics
- Christie CineLife+™ Series (Series-2 IMB compatible) ‡
- HDMI 2.0 x2
- 4K120 fps §
- 1G Ethernet
- 12G SDI x 4
- DisplayPort 1.2 x2
Lenses
- 0.9:1 (HB)
- 1.13-1.66
- 1.31-1.85
- 1.45-2.17
- 1.63-2.71
- 1.95-3.26
- 2.71-3.89 (HB/UHC)
Accessories
- Rack mount pedestal (163-126100-XX)
- 50Hz Chiller (163-124108-XX)
- 60Hz Chiller (163-136101-XX)
- Chiller setup kit plumbing (163-149105-XX)
- Chiller setup kit ducts (163-150107-XX)
- Coolant 10L (003-006744-XX)
Dimensions
- Projector head: 61.1 x 28.0 x 22.0” (1551.1 x 710.6 x 559.6mm)
- Projector pedestal: 53.9 x 29.8 x 29.1” (1369.8 x 756.0 x 739.4mm)
- Chiller: 26.38 x 18.5 x 35.0” (670 x 470 x 890mm)
- Chiller hose: 33ft (10m)
Weight
- Projector: 385 lbs (175kg)
- Chiller: 202 lbs (92kg)

Downloads

Christie CP4440-RGB Datasheet
